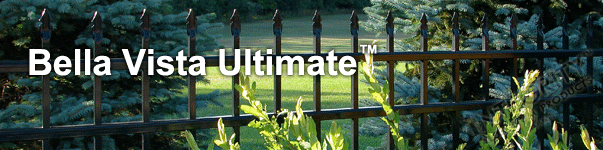

Aluminum Fence | Bella Vista Ultimate™ by iNTEGRITY

Say hello to Bella Vista™ Ultimate, the quintessential ornamental fence. Though rich in the tradition of wrought iron fences of days gone by, when you say hello to this beautiful vision, you'll be saying good-bye to maintenance! This lovely pressed point spear top can also be ordered with optional Nouveau™ vertical pickets as well as circles or butterfly scrolls.

click to enlarge >>

click to enlarge >>

view video >>

Stronger. Better Looking. More Choices. Great Advice. That's Integrity™.

peek inside SmartRail™ >>

see colors >>

switch to see Flush Bottom >>

view sample planning diagram >>

view video >>

iNTEGRITY fence panels are made to get the job done!

click to enlarge types of panels >>

Fence Panel Types

There are 3 types of fence panels: Standard, Xtra-Rack™, and Max-Rack™. All fence panels, in any style, are made "standard" unless otherwise specified by the customer. The standard panels of most (not all) Integrity™ fence styles can ''rack'' or adjust to conform to a slight grade slope. learn more!

switch to see Flush Bottom >>

Classic Bottom or Flush Bottom, same price

Any Integrity™ fence style can be ordered in either Classic or Flush Bottom. This option is cosmetic and does not impact the price of your fence. In certain circumstances though, a Classic Bottom configuration could necessitate a taller height in order to comply with the BOCA Pool Safety Code.

view types of panels >>

Rackable Panels

Since the world is not flat, it is often necessary to install fence panels on a sloped terrain. Standard fence panels can ''rack'' or conform to a grade slope, but there are limits (which are noted in the SPECS tab of this link). There is no upcharge for Xtra-Rack™ or Max-Rack™ panels for residential and commercial grade fences.

view puppy pickets >>

Puppy Pickets™

This feature adds "Extreme" 1 5/8" spacing only to the bottom section of the fence panel, making it safer for small animals while maintaining the visual appeal of our standard fence styles. Puppy Pickets™ can be added to any style, but keep in mind that this feature adds an additional horizontal rail to secure the extra pickets. learn more!

see Classic Extreme™ details >>

Extreme™ Fences

Double the number of pickets and tighten the space between them to convert any style into an iFence™ "Extreme". The Extreme™ feature makes it safer for small animals and adds a measure of privacy. The tighter picket spacing is not extended up beyond the middle horizontal rail in any three-rail design. Panels come factory-assembled as "Extreme". This optional feature cannot be later added.

SuperRail™ Concealed Fastener System (CFS)

SuperRail™ is an upgrade that doubles up the walls of our standard horizontal rails, hiding the fasteners and adding incredible strength. It also closes off the bottom of the horizontal rails, making the panels virtually insect-free! Any Integrity™ fence grade can be converted into the SuperRail™ Concealed Fastener System (CFS). learn more!

view custom fence solutions >>

No-problem™ Custom-sized Panels or Gates

Non-conforming conditions are common to fencing, so while others offer only 6' wide panels in pre-determined heights, we offer you a greater variety of sizes as a better solution for real circumstances. learn more!

Estate Scrolls

Much larger than Butterfly Scrolls, Estate Scrolls are generally used as gate accents or as occasional accents on fence panels. The picture at left displays three adjacent Estate Scrolls. Estate scrolls are sold separately and can be added to any fence style. learn more!

Knock-down Panels

For small orders or add-on orders, you may want to save on freight charges by ordering panels as ''knock-downs.'' This means that they will be shipped unassembled using UPS or Fedex Ground services. There is no upcharge for this service, but we have a two panel per day limit per customer. On rare occasions this service may not be available for purposes of expedited shipping.

Let iNTEGRITY walk you through it!

When ordering a single-leaf gate or a double-leaf gate, whether standard (straight) or arched, use the helpful information below as a step-by-step guide. In terms of construction, all gates ordered will correspond to your chosen fence style, grade and selected optional features. Gates can be ordered independent of fence panels and can often be upgraded in ways that are unique to gates, leaving corresponding fence panels unaffected.

Click here to see specific gate Architectural Schematics for this style>>
Ultimate Collection		Aluminum Gates \| Buyer's Guide
view all configurations >>		1 Select Desired Configuration Gates can be ordered single-leaf or double-leaf, standard (straight) or arched, as depicted. These drawings are only a representation — your gate design will reflect your selected style.
view all hardware options >>		2 Review Included Gate Hardware All Ultimate Collection™ gates are, by default, equipped with a Lokk-Latch, and Multi-Fit hinges, each of which is sold separately. Double (driveway) Classic gates include, by default, one standard drop rod, which is sold separately. learn more! Specify any changes at time of order because all gate frames are sized to accommodate hardware for a particular opening. Changes in hardware can often mean changes in the size of a gate frame even if the size of the opening is constant! Visit Options & Accessories for all hardware options.
view custom width options >>		3 Specify Gate Width The width of a gate is the width of the opening, not the actual width of the gate frame. Single gate standard widths available: 3' to 14', priced in increments of 2'. Double* gate standard widths available: 6' to 28', priced in increments of 2'. learn more! Custom widths are available and cost-effective! See also: How to buy a Driveway Gate.
view custom height options >>		4 Specify Gate Height The height of a gate is always the same as the height of fence panels ordered unless otherwise specified. Custom heights are available and cost effective! When ordering gates independent of fence panels, simply specify the desired height.
view post options >>		5 Pick Your Posts For all Ultimate Collection™ gates up to 4' wide, posts are by default 2.5'' square x .100'' wall thickness, in either ends or blanks. For Ultimate™ gates wider than 4', posts are by default 3'' square x .125'' wall thickness, in either ends or blanks. learn more! Any post can be upgraded to 3'' square by .125'' wall thickness or 4'' square by .125'' wall thickness. Our 4'' square posts (aluminum or steel) are sold only as blank posts. The length of any of these posts can be of your choosing, sold in one-foot increments from 5' to 12' long. Gates and posts must be purchased separately. Custom post lengths are available and cost effective! Standard caps are always included with every post ordered unless upgraded to ball caps.
see colors >>		6 Choose your Color Integrity™ offers 9 gorgeous color options. All colors are available in every style and grade of fences, gates and hand railing. The choice of any standard color does not impact price. see colors Colors as they appear, left to right: Matte Bronze Bronze White Matte White Green Beige Matte Sandstone Black Matte black
explore the possibilities >>		7 Consider Additional Options You can ''dress up'' just the gate on any order of fencing. For instance, you can order Ball Caps only for the gate frame uprights, but not the other posts on your order. Or, you may want other adornments for your gate such as Butterfly Scrolls or an Estate Scroll. For wider gates, a welded U-Frame is an important option to consider. See Options & Accessories (Gates tab) for more choices.
get a free quote >>		8 How to get a Quote We have a very easy-to-follow free quote form that takes about 2 minutes to complete. Use the Fences and Gates tab for all gate quotes except big driveway gates, for which there is a separate tab. Call us directly at 800-762-8876 for helpful information and subsequent quote by email.

Relax! We'll help you determine your final material list!

The information below is provided to inform, not overwhelm. We want you to know that our products are versatile and options are available to accommodate a wide range of circumstances and/or preferences! We'll always be at your side to help you order what you will need.

view types of posts enlarged >>		Types of Posts Integrity™ Aluminum fence posts are available in five standard types. All types of posts are available in various lengths. Don't worry, we will help you determine what types and how many you will need should you place an order. You do not need to have an exact list to get a preliminary quote on your project!
		Standard Caps for Posts Always Included Every post we sell come with standard caps included. Always. These caps are not factory installed and can be purchased separately at any time if replacements are needed. All of our standard Integrity™ colors are available in each of the following post sizes: 2" square, 2 1/2'' square, 3'' square and 4'' square. Though not shown here, the symbol of Integrity™ will appear atop the caps.
		Ball Caps for Posts This is a decorative way to cap any post, regardless of its dimensions. Ball Caps can be purchased for all posts on an order or just some of them. learn more! When a standard cap is upgraded to a ball cap the post comes with just the ball cap, not both caps. Ball caps are not factory installed and can be purchased separately at any time, even to adorn existing Integrity Aluminum Products™ fences. They are available in our standard Integrity™ colors, or in gold.
		Welded Flanges for Posts When it isn't possible to "sink" a post into the ground, and you need the most durable post-to-surface attachment we offer, order welded aluminum flanges. Factory-welded then powder coated in one of our standard colors, these flanges are ideal for mounting to hard surfaces such as concrete. learn more! For best results, surface area should be level. Screws to mount to the surface are not included (since applications can vary). Unless otherwise specified, post with welded flange will be cut 3'' longer than the height of your fence. This allows one inch from the top of the fence to the top of the post and two inches from the bottom of the fence to the flange itself. For instance, a 48'' high fence to be installed using posts with welded flanges will have posts cut to 51''. All welded flanges are 3/8'' thick and have four pre-drilled holes for screws (one in each corner). For 2'' square posts order 4'' square flanges and for 2 1/2" posts order 6'' square flanges. All posts are welded centered on the flange unless customized (see custom fences). Available in all standard Integrity™ colors, welded flanges do not include screws to mount to the surface (since applications can vary).
view post skirt enlarged >>		One-piece Skirt for Base of Post Conceal a flange, cover the core hole or just trim the base of your post with a post skirt! Just slip it on in seconds before the panel is attached. Skirts are available for both 2'' square and 2 1/2'' square posts in all of our standard Integrity™ colors.
		Two-piece Skirt for Base of Post Conceal a flange, cover the core hole or just trim the base of your post with a post skirt! Can be added to the base of a post at any time – even after the panel is in place. Skirts are available for both 2'' square and 2 1/2'' square posts in all of our standard Integrity™ colors.
view flange enlarged >>		Wedge Flanges for Posts Use this two-piece flange for surface attachment of 2'' or 2 1/2'' square posts. The flange is wedged into the base of the post and the internal bolt is tightened until the flange is affixed. learn more! This post-to-surface mounting attachment is not recommended for any fence exceeding 48'' in height (use welded flanges for heights over 48''). Wedge flanges are not factory-installed, can be ordered separately and do not include screws to mount to the surface (since applications can vary). Available in any of our standard Integrity™ colors.
		Posts Upgraded to 2 1/2" Square by .100" Wall All posts for our residential grade fence panels feature 2'' square with two grades of wall thickness (.080'' and .125''). These posts can be upgraded to 2 1/2'' square (available only in .100'' wall thickness). Upgrade to 2 1/2'' square posts for the entire project, or if you like, just for the the gates, but this option must be specified at the time of order.

Endless Attachments can make installations a breeze!

Mounting fences to brick, wood or concrete surfaces is easy with our Endless™ line of attachment brackets. Uniquely designed, these attachments are available in every grade and color in stationary, horizontally-adjustable, and vertically-adjustable wall mounts, as well as attractive floor flanges for posts.

		Stationary Rail Mounting Brackets This is what you need when a fence panel is being attached directly to a structure such as a pillar or building without the use of a punched post. When necessary, though, they can also be attached to posts. These brackets are available in sizes to fit the horizontal railing of any Integrity™ fence grade. Stationary rail mounting brackets are used for ''straight-on'' attachments. learn more! Angled attachments require adjustable rail mounting brackets (see below). Rail mounting brackets are sold separately in any of our standard Integrity™ colors. Please specify color, type and grade when ordering.
		Horizontally Adjustable Rail Mounting Brackets For sharp (left-to-right) 45 degree angled turns, these horizontally adjustable brackets make it easy to mount standard fence panels to Integrity™ fence posts or structures such as pillars or buildings. These brackets are available to fit the railing of any Integrity™ fence grade and sold separately in any of our standard Integrity™ colors. Please specify color and grade when ordering.
		Vertically Adjustable Rail Mounting Brackets For significant (up-and-down) slopes, these vertically adjustable brackets make it easy to mount Integrity™ Xtra-Rack™ or Max-Rack™ fence panels to blank (not pre-punched) fence posts or structures such as pillars or buildings. These brackets are available to fit the railing of any Integrity™ fence grade and sold separately in any of our standard Integrity™ colors.
		Welded Flanges for Posts it isn't possible to "sink" a post into the ground, and you need the most durable post-to-surface attachment we offer, order welded aluminum flanges. Factory-welded then powder coated in one of our standard colors, these flanges are ideal for mounting to hard surfaces such as concrete. learn more! For best results, surface area should be level. Screws to mount to the surface are not included (since applications can vary). Unless otherwise specified, post with welded flange will be cut 3'' longer than the height of your fence. This allows one inch from the top of the fence to the top of the post and two inches from the bottom of the fence to the flange itself. For instance, a 48'' high fence to be installed using posts with welded flanges will have posts cut to 51''. All welded flanges are 3/8'' thick and have four pre-drilled holes for screws (one in each corner). For 2'' square posts order 4'' square flanges and for 2 1/2" posts order 6'' square flanges. All posts are welded centered on the flange unless customized (see custom fences). Available in all standard Integrity™ colors, welded flanges do not include screws to mount to the surface (since applications can vary).
view post skirt enlarged >>		Two-piece Skirt for Base of Post Conceal a flange, cover the core hole or just trim the base of your post with a post skirt! Can be added to the base of a post at any time – even after the panel is in place. Skirts are available for both 2'' square and 2 1/2'' square posts in all of our standard Integrity™ colors.
view flange enlarged >>		Wedge Flanges for Posts Use this two-piece flange for surface attachment of 2'' or 2 1/2'' square posts. The flange is wedged into the base of the post and the internal bolt is tightened until the flange is affixed. learn more! This post-to-surface mounting attachment is not recommended for any fence exceeding 48'' in height (use welded flanges for heights over 48''). Wedge flanges are not factory-installed, can be ordered separately and do not include screws to mount to the surface (since applications can vary). Available in any of our standard Integrity™ colors.
		Touch-up Paint Order a can of touch up paint in any of our standard Integrty™ colors! 11 oz., must be shipped ground.

Bella Vista Ultimate

SPECIFICATIONS

View architectural schematics for this style >>

Standard Panel Height: 3' to 12', priced in increments of 1'
Panels come fully assembled; Gates fully welded
Height of fence panel/gate is actual, not nominal

Standard Fence Panel Width: 4', 5', 6', 7' or 8'

Custom Width or Height Panels and Gates: Available and cost-effective!

Colors: Black, Bronze, White, Sandstone, Beige,
Forest Green
Most colors available in gloss or matte finsh

Finish: TGIC technology advanced powder coating system

Vertical Pickets: 1'' square x .062'' walls
Spacing Between Pickets: 3 5/8''
Extreme™ 1 1/2'' spacing option available
Fasteners: Stainless steel

Horizontal Rails: 1 5/8'' x 1 5/8'' nominal with .100'' side walls and .070'' top walls

Bottom Rail Placement: Classic Bottom or optional Flush Bottom

Posts: 2 1/2'' square x length x .100'' walls, all types
Various lengths available as needed
All posts include standard caps

Alloy: 6005-T5, minimum strength 35,000 PSI

Gate Frame: Welded construction with 2 1/2'' square uprights!

Gate Posts: 2 1/2'' square x length x .100' walls, ends or blanks
Various lengths available as needed

Gate Hinges: Not included. Sold separately, see options
Titan™ hinges are recommended

Gate Latch: Not included. Sold separately, see options

Fence panels, gates, posts, and accessories are sold separately

Grade Slopes: Bella Vista Ultimate™ fences are rackable and available in three types of panels:

Standard Panels: Adjust up to 4'' in a span of 6'

Xtra-Rack™ Panels: Adjust up to 12'' in a span of 6'

Max-Rack™ Panels: Adjust up to 24'' in a span of 6'

Important Factors That Make Us Better

		Our aluminum fences are heavier and stronger Our posts are 33% thicker! (Typical DIY suppliers sell thin-walled .060'' posts while we supply .080'' and an even beefier .125'' for the gate posts) Our panels are tested strong SmartRail™, our horizontal rail is structurally superior
		Gates are welded-tough and sized to your specs Get your gate in the exact size you need Get your gate to fit between existing posts or pillars Make your gate wide enough to span an existing sidewalk Get a stylish arch feature on any gate Any style of fence can be made into a Driveway Gate
		Our Aluminum fences are simply better looking Our SmartRail™ is not only stronger but more attractive Our ImPress Point™ spears have enhanced details Our fence designs are innovative and stylish
		Orders leave the factory within 2 weeks! We ship 97% of all orders within 2 weeks Your fence is made-to-order when you order Our fences are made in America, not pre-manufactured in China
		Panels can be ordered in a variety of widths Panels are available 3', 4', 5', 6', or 7' wide Save money buying only what you really need Avoid unattractive small "patch" panels
		Our LifeCoat™ finish has a lifetime warranty Lifetime warranty against cracking, chipping, or peeling Our paint is tested for better UV performance We have 9 colors to choose from We don't charge extra for gorgeous matte finishes
		Fences without Limits™ is more than a slogan Our Puppy Picket™ panels contain small dogs We don't charge extra for special panels needed for steep hills (called "rackable" panels) We can cost-effectively customize height for special circumstances such as a fence atop a wall We can match rail positions with an existing fence
		Our quotes are detailed, honest and informative We specify what you will get for the price quoted We endeavor to make helpful suggestions We list options you may have overlooked Gate hardware is always included so there are no surprises later
		We send out FREE samples! We want you see what you will be buying We know you'll notice the quality difference We help you decide between colors We also want to send you a brochure!
		We follow the Golden Rule! We genuinely care about you and your project! We will go the extra mile to help you succeed! We're always here to answer questions, even on weekends!
